Edelbrock

Edelbrock VRS-4150 Carburetor

$813.95 USD

Sale Sold out

CFM rating 650 CFM 750 CFM Annular boosters 850 CFM Annular boosters

Quantity

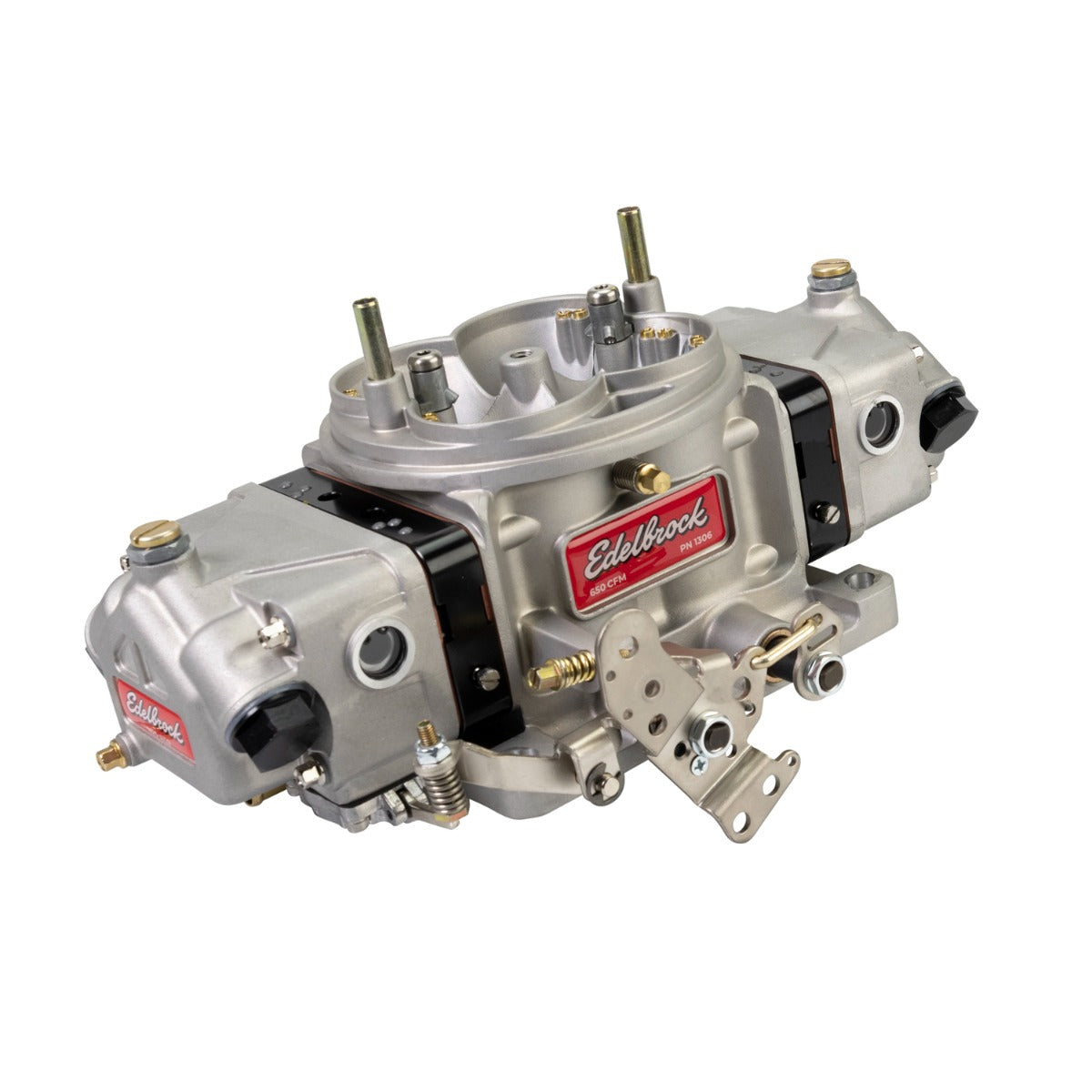

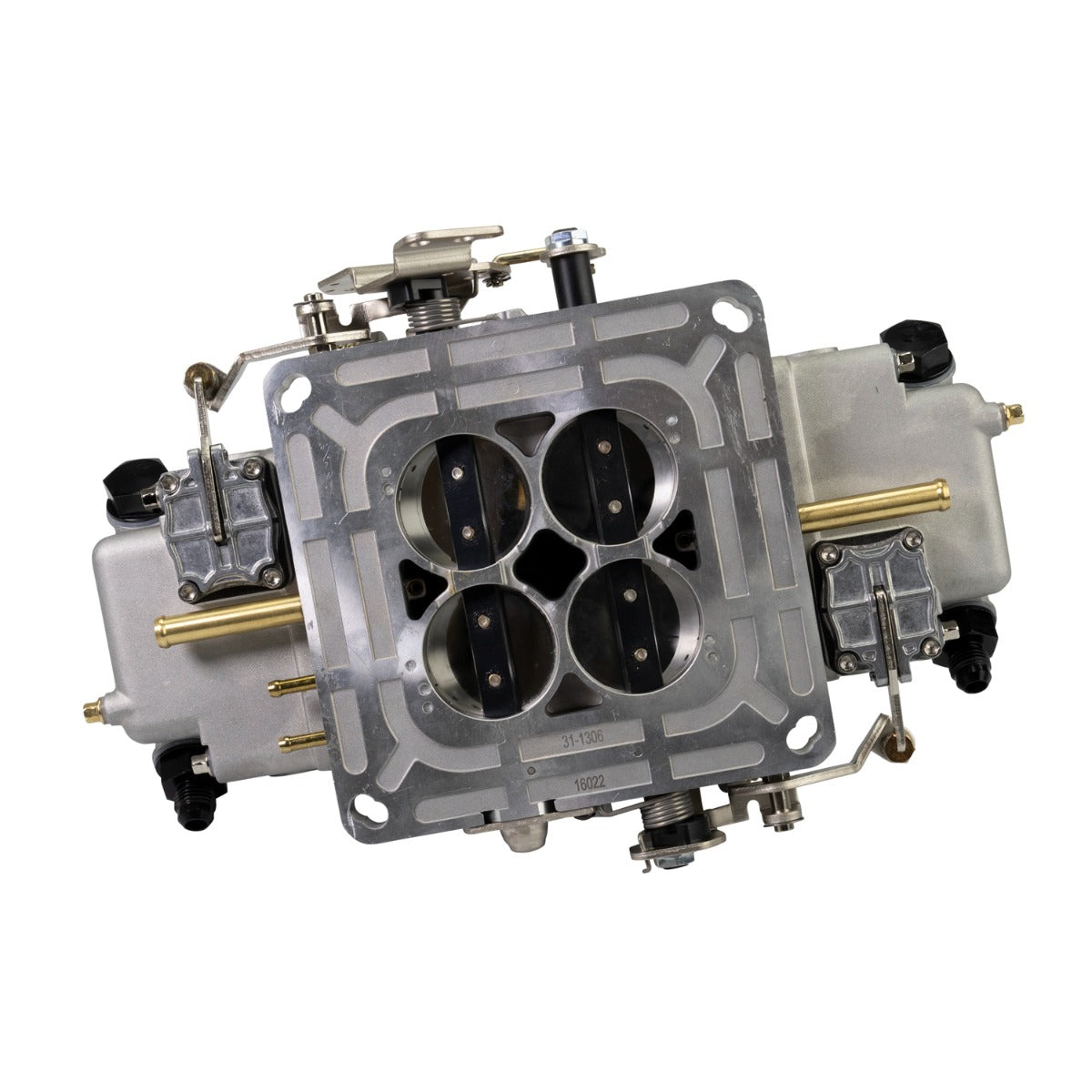

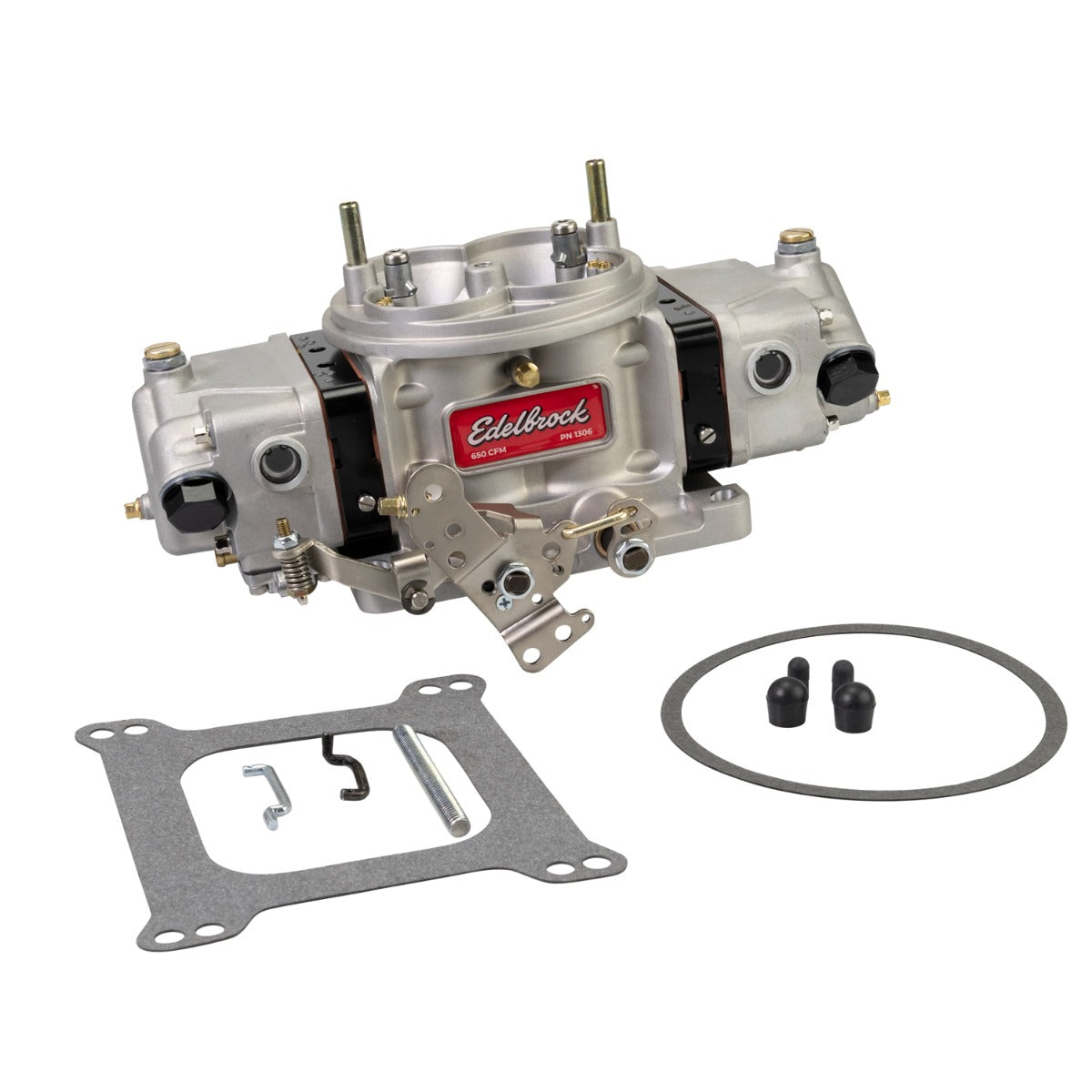

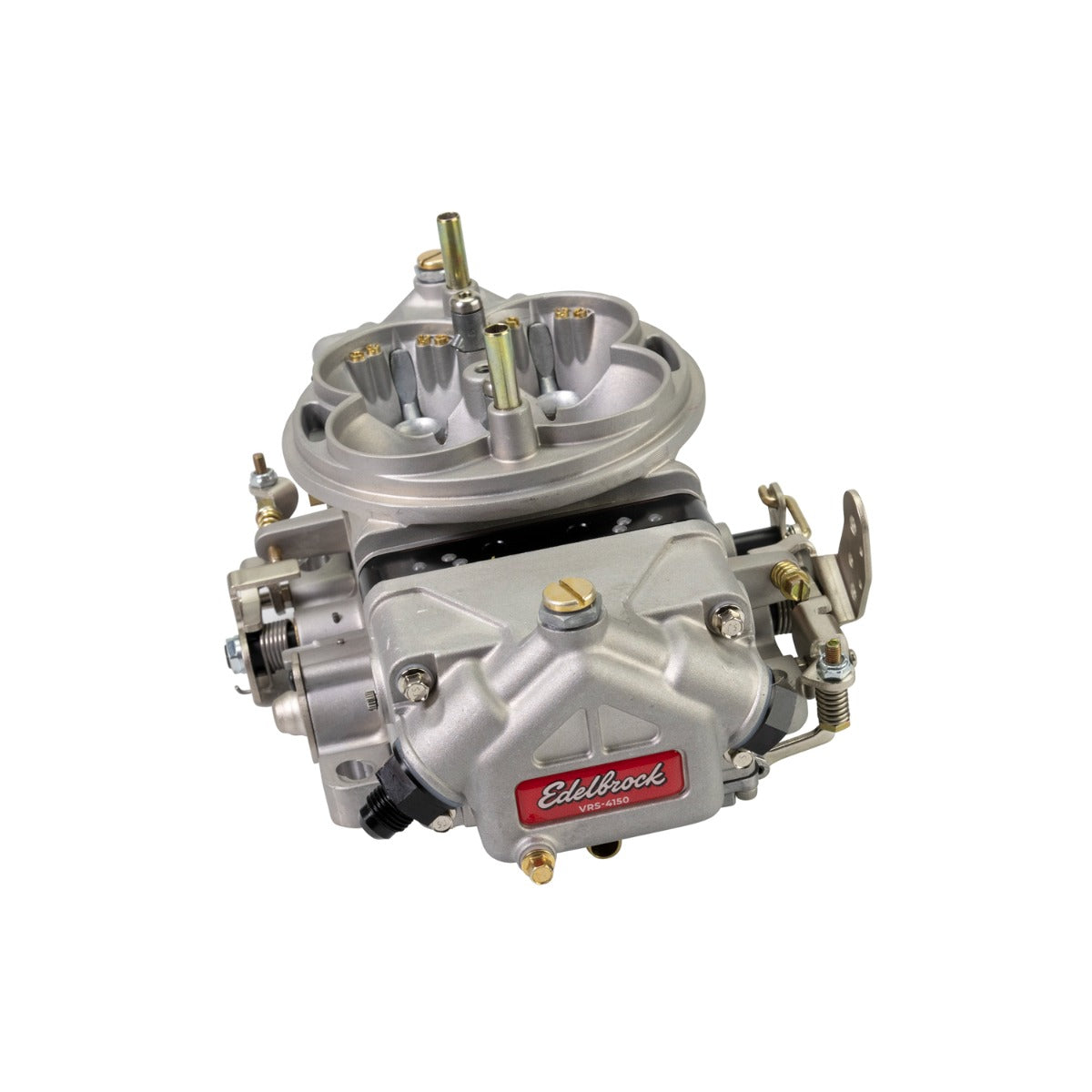

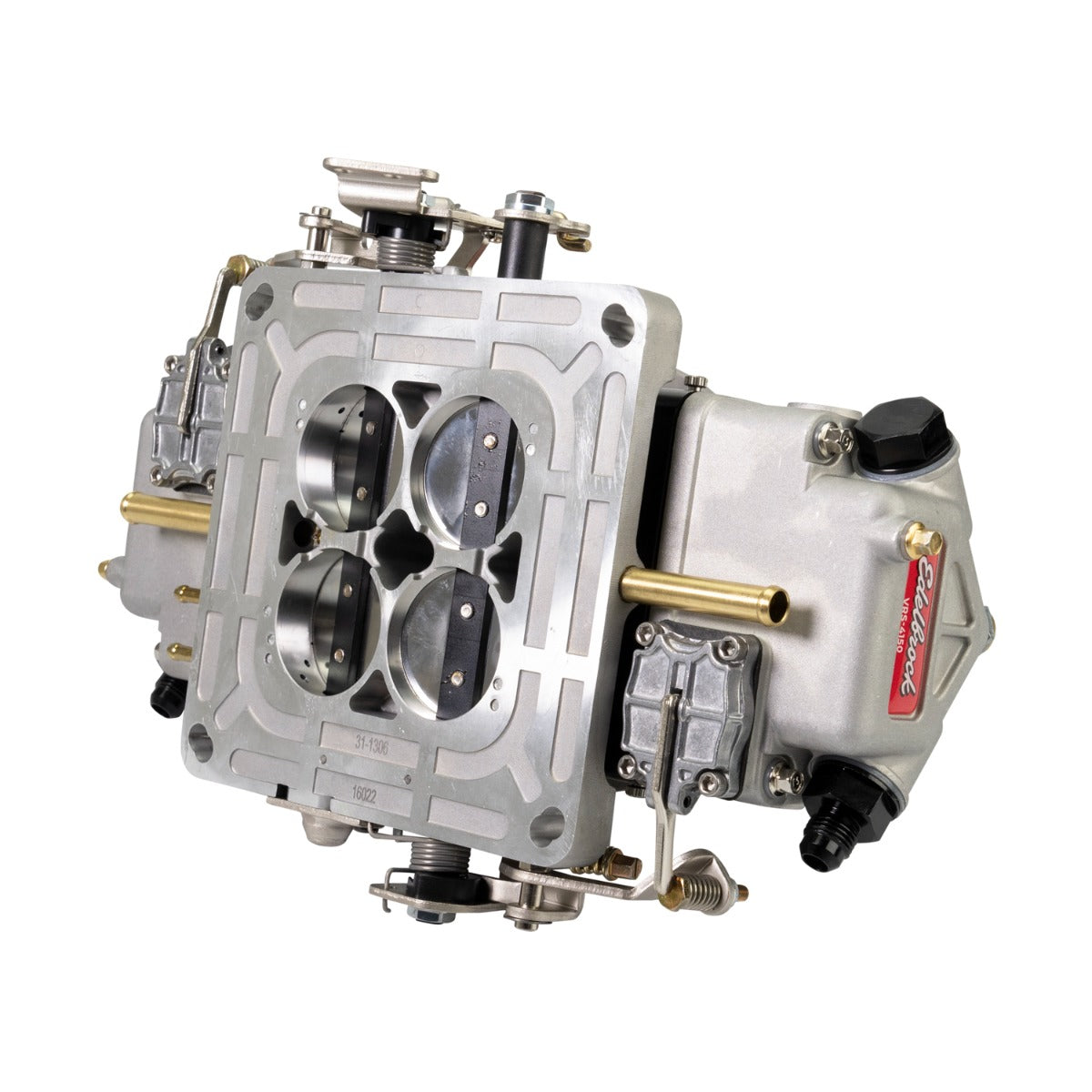

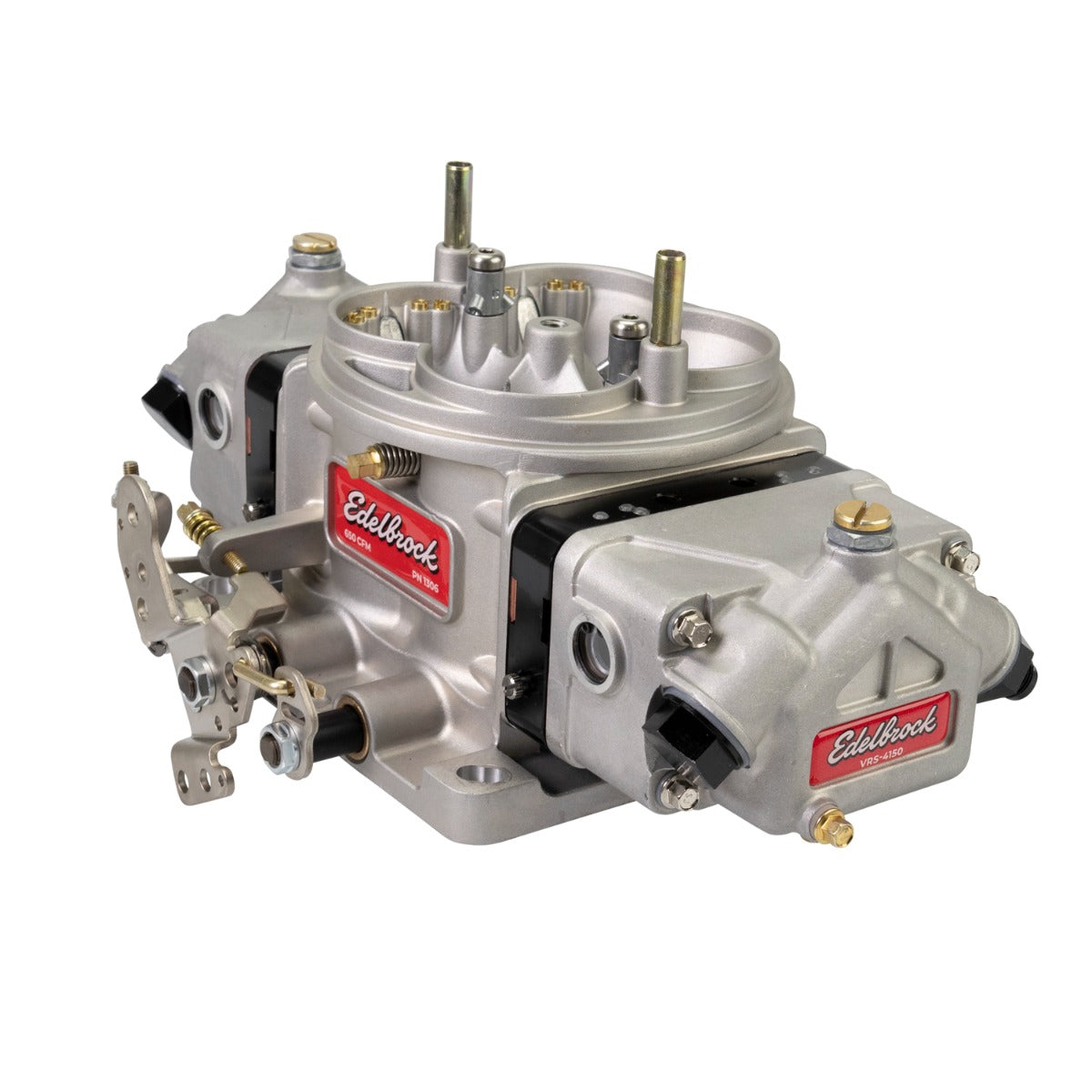

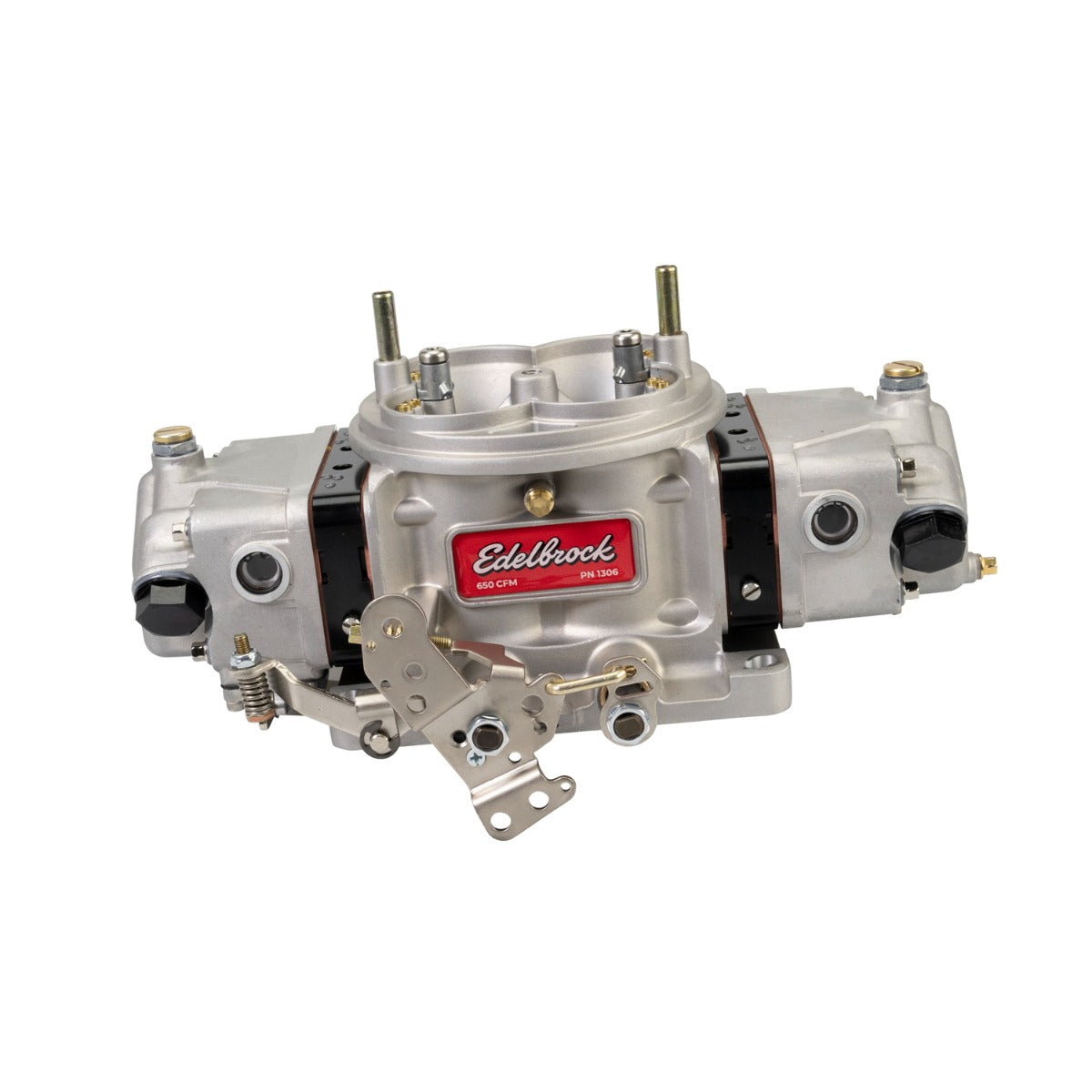

Edelbrock VRS-4150 Race & Performance Carburetor is street friendly but race ready. The 3.75“-tall cast aluminum main body fits all 4150 and 4500 carb flange manifolds without requiring an adapter plate. A street throttle arm, PTFE-coated throttle shafts and built-in provisions for a standard GM three-wire TPS mount add features to this carburetor that are ideal for any user. Multiple vacuum hook-ups keep this carburetor usable on the street but still ready for the track with larger capacity fuel bowls and four circuit billet metering blocks with screw-in emulsion bleeds. All of these features make for easy tuning and great versatility in many applications. The 20% larger capacity fuel bowls feature internal ribs to control fuel slosh, and a sculpted baffle directs incoming fuel to the sides to minimize bubbles. The floats have corner cuts to avoid shutting off the fuel flow during hard cornering, and jet extender notches and jet extenders in the rear to keep the jets covered in fuel under hard acceleration. VRS carburetors allow users to externally adjust idle bypass air and the adjustment screws are accessible without removing the air cleaner/scoop. The advanced idle circuit features interchangeable idle discharge jets in all four corners to allow for a smooth, clean idle with the use of big, low-vacuum camshafts. Normally found only in high end racing carbs, the VRS includes fully adjustable intermediate fuel circuits, which help to provide incredible throttle response. Finally, for greater control at high RPM, the high speed/main fuel circuit is split into two bleed circuits – one each for the lower and upper sections. As an additional feature, the power valves are located on both primaries and secondaries to support optimized jetting. The power valve will add fuel as necessary while the power valve protection circuit prevents diaphragm damage from backfires.

Some of the items in your cart are NOT CARB COMPLIANT! It is illegal to install, sell or offer for sale any aftermarket part that alters or modifies the original design or performance of the motor vehicle pollution control system unless the part is exempted or has an Executive Order issued by the California Air Resources Board (also commonly referred to as the "EO" number). Installation of parts which are not CARB approved on a pollution-controlled vehicle in the State of California may result in the Department of Motor Vehicles (DMV) revoking the vehicle registration and certificate of ownership (title), refusing the transfer of registration, and/or the vehicle failing smog inspection. Law enforcement may cite you for the use of an illegal aftermarket part and seize your title and license plate.

For use on a 1965 OR OLDER VEHICLE and is being used on a vehicle made in or before the year 1965. Or, they are for use in a specially constructed vehicle per California Senate Bill 100 (SB 100).
For use on a NON-HIGHWAY VEHICLE, this product is being installed on a vehicle that will NEVER be used, or licensed, or registered for use upon a highway in the state of California.
CANNOT be installed on a 1966 OR NEWER HIGHWAY VEHICLE
that IS licensed, or registered for use upon a highway in the state of California and was made in or after the year 1966.

Here is the video of the 750 on the dyno FIRST PUBLIC Dyno test of the Edelbrock VRS-4150!!!! Did it live up to the hype??? "HECK YES!!!" - YouTube

View full details
